App descriptor

An app descriptor describes an app. The descriptor assigns the app a name, icon and implementation class. The name of the app content node must be unique as it is used to refer to the app across the system. This means you cannot name your own app pages since a Pages app already exists.

This app descriptor is part of the Magnolia 6 UI framework. The fully qualified class name is info.magnolia.ui.api.app.registry.ConfiguredAppDescriptor.

Example descriptor

icon: icon-app
class: info.magnolia.ui.api.app.registry.ConfiguredAppDescriptor
appClass: info.magnolia.ui.framework.app.BaseApp
label: Base App
subApps:

Descriptor properties

Property Description

subApps

required

Node containing subapps.

appClass

required

Fully qualified name of the class that contains the app business logic. The class must implement the info.magnolia.ui.api.app.App interface.

name

optional

App name. If no value is specified, either the file name (without the suffix .yaml) or the JCR node name will be used.

class

optional, default is info.magnolia.ui.api.app.registry.ConfiguredAppDescriptor

App descriptor class that reads the configuration. The class must implement the info.magnolia.ui.api.app.AppDescriptor interface. Use the fully qualified class name.

Another possible value is info.magnolia.ui.contentapp.configuration.ContentAppDescriptor.

datasource

optional

Connects the app to a data source. For this to work, you have to use the info.magnolia.ui.contentapp.configuration.ContentAppDescriptor class.

enabled

optional, default is true

When false, the app is disabled.

icon

optional

CSS class that identifies an icon used for the app. See How to add SVG icons for apps.

label

optional

Text or message bundle key displayed on the app icon in the app launcher.

permissions

optional

Provisions the app to certain users. See Permissions.

theme

optional

Name of a custom app theme.

Permissions

The permission to use an app is granted in the permissions configuration. The subnodes are roles. This allows you to provision the app to certain users in your organization.

In the following example, the app is provisioned to the travel-demo-editor and travel-demo-publisher roles. The property names (editors and publishers) are arbitrary—you can use any name you like. The value must be a valid role name.

appClass: info.magnolia.ui.framework.app.BaseApp
class: info.magnolia.ui.api.app.registry.ConfiguredAppDescriptor
icon: icon-app
label: Base App
permissions:
  roles:
    editors: travel-demo-editor
    publishers: travel-demo-publisher

App descriptors for content-type apps

In Magnolia, app descriptors can also be used to create apps based on Magnolia Content Types. For this, a special directive must be used in the YAML descriptor: !content-type.

There are several advantages to configuring an app this way. Such an app:

  • Always leverages a well-defined content type definition.

    Data of content type based apps can be accessed not only using Delivery API, but also through GraphQL API.

  • Allows the editors to start entering content right away.

  • Usually has a very short descriptor and therefore needs less development time. There is no need to specify further app properties.

    You can, of course, tailor the app descriptor within the same file by adding additional configuration which will overwrite any configuration with the same name coming from the !content-type directive. Alternatively, you can create a decoration.

    Example extended configuration

    /my-tours-light-module/apps/tours.yaml
    !content-type:tour
label: tours.app.label
icon: icon-language-app
permissions:
  roles:
    - travel-demo-editor
    - travel-demo-publisher
subApps:
  browser:
    actions:
     addItem:
       appName: tours
     editItem:
       appName: tours
  detail:
    form:
      properties:
        name:
          i18n: true

6 UI content-type directive

In Magnolia 6.4.x, the !content-type directive generates a 6 UI app.

/my-tours-light-module/apps/tourGuides-app.yaml
!content-type:tourGuide
name: tourGuides-app

5 UI content-type directive

If you needed to create a , you must use the m5-marked variant of the directive.

/my-tours-light-module/apps/tourGuides-app.yaml
!content-type-m5:tourGuide
name: tourGuides-app

In this case, the app will be interpreted as a 5 UI app and the app descriptor must be defined using the .

Even though you can still use apps built in the 5 UI framework in Magnolia 6.3.x, this framework has been deprecated.

Content-Type and vanilla descriptors (side-by-side examples)

This subsection outlines the primary distinctions between two methods for configuring app descriptors: a content type-based configuration and a fully manual (vanilla) configuration.

Content Type-Based Approach The Vanilla Approach

Streamlines the app configuration file, yielding a shorter, more concise structure.

Magnolia automatically provides essential app descriptor components, such as the browser and detail subapps, along with the action, action bar, and form definitions. Developers can still override or extend these Magnolia-provided elements by modifying the app descriptor with explicit overrides or inheritance.

Requires a more detailed and verbose configuration process.

Developers must possess a clear understanding of each component’s configuration requirements and their respective locations.

However, this approach provides greater initial flexibility, enabling developers to manually define all aspects of the app without depending on a predefined content type definition.

The foo example apps

The example apps configured below, named foo2 and foo, are part of a light module called app-minimal. You can clone this module from our Bitbucket repository and install it in your Magnolia instance.

Both apps implement a minimal feature: users can add content to their respective workspaces (named foo2 and foo) using a dialog with a single text field labeled Name.

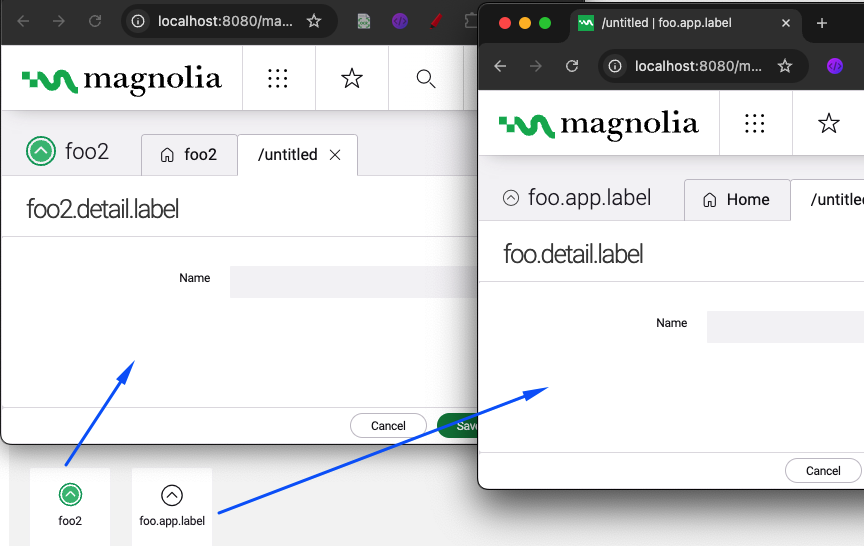

The add content dialog in the foo2 and foo apps

To keep the configuration straightforward, internationalization (i18n) labels are omitted from these examples. You can enhance the apps later by adding an i18n message bundle as needed.
The foo2 app (content-type descriptor app) The foo app (vanilla descriptor app)

The foo2 app is a content type-based app, defined across two YAML files:

The foo app is a vanilla app, also configured with two YAML files, but with distinct characteristics:

  • The foo2.yaml file (in the contentTypes folder) registers the Name field as a content type field.

    This transforms the Name field into structured content, directly accessible via GraphQL or similar interfaces.

  • The foo2.yaml file (in the apps folder) leverages the content type to define the app succinctly, avoiding the need for an extensive configuration structure.

    Magnolia automatically enriches the foo2 app with additional user actions beyond the basic "add content" functionality tied to the Name field.

  • The foo.yaml file (in the contentTypes folder) solely establishes the foo workspace for the app; it does not register the Name field as a content type field.

    If the foo workspace already exists, only the app descriptor file would be necessary to activate the app.

  • The foo.yaml file (in the apps folder explicitly configures all the required components of the app, providing full control over its structure and behavior.

Content-Type definitions

  • /app-minimal/contentTypes/foo2.yaml

  • /app-minimal/contentTypes/foo.yaml

datasource:
  $type: jcrContentTypeDatasource
  workspace: foo2
  autoCreate: true

model:
  properties:
    - name: name
datasource:
  workspace: foo
  autoCreate: true

App descriptors

  • /app-minimal/apps/foo2.yaml

  • /app-minimal/apps/foo.yaml

!content-type:foo2
name: foo2
appClass: info.magnolia.ui.framework.app.BaseApp
class: info.magnolia.ui.contentapp.configuration.ContentAppDescriptor

datasource:
  $type: jcrDatasource
  workspace: foo
  allowedNodeTypes:
    - mgnl:content

subApps:
  browser:
    class: info.magnolia.ui.contentapp.configuration.BrowserDescriptor
    actions:
      add:
        $type: openDetailSubappAction
        appName: foo
        subAppName: detail
        viewType: add
        availability:
          root: true
          nodes: false

    actionbar:
      sections:
        - name: actions
          availability:
            root: true
          groups:
            - name: add
              items:
                - name: add

    workbench:
      contentViews:
        list:
          $type: listView
          columns:
            jcrName:
              $type: jcrTitleColumn

  detail:
    class: info.magnolia.ui.contentapp.detail.DetailDescriptor
    itemProvider:
      $type: jcrNodeFromLocationProvider
      workspace: foo
    form:
      properties:
        name:
          $type: textField
