Accessible forms (tech preview)

This is a technical preview of the Accessible forms feature, do not use in production.

We encourage you to try the technical preview or read about it and share your experience, impressions and inputs with us at feedback@magnolia-cms.com.

⚠️ A production-ready version of accessible forms will only be available for Magnolia 6.4 and later, not for the Magnolia 6.3 branch.

Magnolia is developing a new UI based on front-end technology (React) and a custom front-end design system built from the ground up for accessibility.

Magnolia’s accessible forms and design system support equal access for everyone. They offer a modern design and help you build more readable, consistent, performant, and usable forms. Furthermore, it preserves your current features and improves their accessibility.

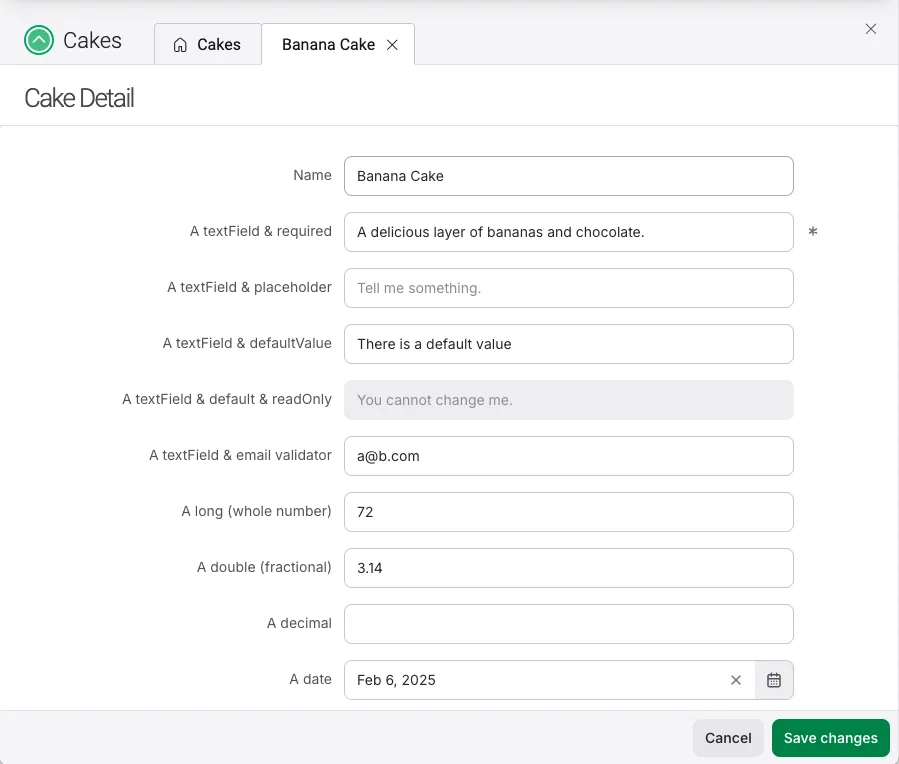

Click the images to enlarge and compare.
Vaadin form	New Accessible form

Viewing accessible forms

Accessible forms use the existing Magnolia form definitions but don’t support every field or every property. When a form definition is fully supported, the new accessible form is displayed. Otherwise, the system will fall back to the standard Vaadin form. In this case, problems are shown in the Definitions app to indicate which features aren’t supported in the new UI. Set the new Problem type filter to UNSUPPORTED or IGNORED to see them.

Support for more fields is in development, but not all of the current behavior will be supported. To streamline the product, we’ll remove some rarely used features. See Current and planned support for more details.

How to try accessible forms

There are a few different options to get started with the new forms.

Watch a video

Watch a 10-minute overview of the Accessible forms in action.

Live demo

Email us at feedback@magnolia-cms.com to book a live demo, and share your feedback with us directly.

Local installation

The feature requires Magnolia 6.4.0-beta1.

We recommend one of the following installation routes.

Build with Maven
1. Create a 6.4.0-beta1 DX Core custom webapp. The warp-forms is included automatically together with the DX Core dependencies.
2. Run the created webapp in a Jakarta-compatible Tomcat (10.1.43+).
Install the released Tomcat bundle
- Download a full webapp bundled with the Tomcat:

  This option requires a DX Core license.
  1. Sign in to Magnolia Nexus.
  2. Download and install the magnolia-dx-core-webapp-6.4.0-alpha1-tomcat-bundle (ZIP archive).

Add the demo project and try it out

There’s a demo project called demo-warp-forms, which demonstrates all of the features so far implemented in Accessible forms.

Download the demo project and copy the demo-warp-forms-lm directory into your configured magnolia.resources.dir directory (into the light-modules directory).
Start your Magnolia instance.
Open the Cakes app and create a new item to try out the Accessible forms.

Possible issues in the beta1

Determine why a form is displaying Vaadin forms

Are you seeing Vaadin forms instead of the new Warp forms?

Open the Definitions app, and switch to the Problems subapp.
Use the new Problem type filter and choose UNSUPPORTED.
You will now see the problems causing the form to display the Vaadin form.

See Current and planned support for details on which features we still plan to support in the future.

Check which properties are being ignored

Open the Definitions app, and switch to the Problems subapp. Use the new Problem type filter and choose IGNORED.

If it’s important for you that these properties are used in the form and not ignored, you can force a form to be displayed in Vaadin by setting the $type of the form to vaadinForm.

...
    detail:
        label: My App detail
        form:
            $type: vaadinForm
            properties:
...

See Current and planned support for a full list of which properties are ignored.

See all the problems of a form

In the Problems subapp, only the first problem of each definition is displayed. To see all the problems of a form, check the checkbox on the left to select the problem and use the Export problems action in the Action bar. A text file will be exported.

Use Accessible forms and Vaadin forms in parallel

Even once the Accessible forms feature is released, not every form will be supported due to the many custom fields included in extensions or customer projects. There will be a transition period. You can continue to use Vaadin forms and upgrade them to Accessible forms as appropriate.

Current and planned support

This section outlines which standard Magnolia fields and related features are supported in the new UI.

Standard form fields supported

The standard fields are described in the Field definition section of the Magnolia documentation.

Supported fields	Fields not yet fully supported
checkBoxField	jsonComboBoxField
checkBoxGroupField	jsonLinkField
compositeField	sliderField
damLinkField	staticField
comboBoxField
dateField
jcrMultiField
jcrMultiLinkField (renders as jcrMultiField)
jcrMultiValueField
listSelectField
pageLinkField
radioButtonGroupField
richTextField
textField
tokenField (renders as comboBoxField)
twinColSelectField (renders as comboBoxField)
switchableField
passwordField
linkField

Supported fields

Fields not yet fully supported
