Travel Demo for developers

The Travel Demo project is a great use case to understand how Magnolia projects are put together. Have a look at the Hello Magnolia tutorial first for an introduction to basic templating. This tutorial begins by guiding you through installing a Community Edition version of Magnolia., which this page is based on.

This page is based on the Community Edition version of the demo. The main difference in DX Core is the use of the Multisite module.

Clone project

Use Git to get a copy of the Travel Demo code.

git clone --single-branch --branch release/1.6 https://bitbucket.org/magnolia-cms/travel-demo.git

Project organization

The project comprises three Maven modules

Module Description

magnolia-travel-demo-parent

A parent project for the other two modules. Specifies dependencies and their versions.

magnolia-travel-demo

A simple page-based website.

magnolia-travel-tours

Tour and Tour Categories content apps, and templating components that make use of them. Depends on magnolia-travel-demo.

Component template

Component templates are the bread and butter of a typical Magnolia project. Let’s take a look at the TourType Teaser Row component which is used under the carousel on the home page to show some hand-picked Tour Category content items. Familiarize yourself with the component by logging into AdminCentral, opening the travel page, and editing the component contents. Remove or add a tour type.

Open magnolia-travel-tours/src/main/resources/tours. This is the key directory for the module where templates, dialogs, web resources and c

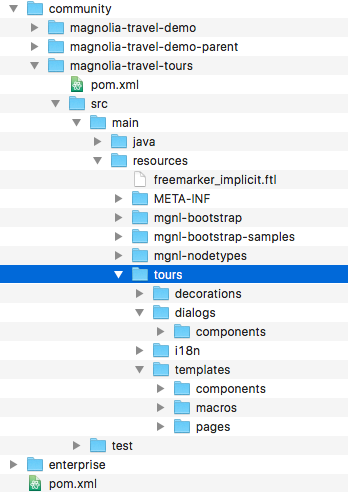

Key directory

Component template definition

YAML files in the templates directory are interpreted as template definitions, the master file for any template. Template definitions specify all the configuration, classes, files and i18n information.

Open /templates/components/tourTypeTeaserRow.yaml

templateScript: /tours/templates/components/tourTypeTeaserRow.ftl
dialog: tours:components/tourTypeTeaserRow
modelClass: info.magnolia.demo.travel.tours.model.TourTeaserModel

renderType: freemarker

Component template script

Take a look at the referenced templateScript, in the same directory: /templates/components/tourTypeTeaserRow.ftl.

The assignment, [#assign tours = model.tours], loads the tours variable with the result of the getTours method in the modelClass defined in the template definition. The content expressions, like ${content.title!} pull values directly from the content entered by editors in the dialog.

Component dialog definition

YAML files in the dialog directory are interpreted as dialog definitions. The dialog definition referenced in the template definition is in /dialogs/components/tourTypeTeaserRow.yaml.

The definition specifies the dialog that is opened when an author edits the component on a page. The most important part of a dialog is the field list. This dialog has three fields: title, body and tourTypes. tourTypes is a sophisticated MultiValueField which can store multiple Linkfields that link to the TourType items.

The name of the field in the dialog definition is the name of the node property that is stored in the website workspace when the editor saves their changes.

Component model

A model is a Java class that can hold business logic and can interact with the rest of the Magnolia system. For Java developers, models are a good way to keep templates clean and logic in Java where you can benefit from IDE tooling and testing possibilities. Models are also good for projects with more sophisticated integrations.

For non-Java developers and projects, the same templating functions used by models are available directly to the templates via context attributes like cmsfn, damfn, catfn, searchfn and navfn. Logic can also be modularized in templates with the use of includes and macros. Models are optional - use them if they fit your team and project.

The model for this template is info.magnolia.demo.travel.tours.model.TourTeaserModel.

Page template

Page templates are very similar to component templates, and can have the same template properties, but they describe an entire page.

Page templates are automatically registered in Magnolia and are available for selection in the Pages app when creating a new page or changing the template of an existing page.

Lets take a look at the home page template in the magnolia-travel-demo module.

Open magnolia-travel-demo/src/main/resources/travel-demo. Further paths are relative to this directory.

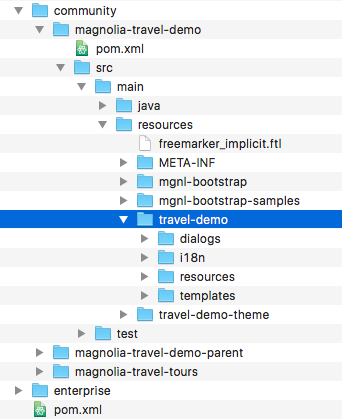

Travel demo directory

Page template definition

Open /templates/pages/home.yaml

As with the component template definition, the page template definition is the master file for the template.

Page template script

Page templates can also have a templateScript property, but home.yaml does not explicitly define one. This is because the template prototype references the travel-demo/templates/pages/main.ftl script which the home template inherits.

A page template must include the [@cms.page /] directive to support editing.

Areas and component availability

All templates can contain areas, which are usually containers for components. In the template script, you can see several area directives, such as [@cms.area name="main"/].

An area definition within the page template definition lists which components it can contain. In the home.yaml template definition, note the three templates listed under the main/availableComponents item. When an editor adds a component in main area, these templates are available in the Add component dialog.

Definition decoration

The definition decoration mechanism allows you to change the properties and subdefinitions of an existing definition.

Open magnolia-travel-tours/src/main/resources/tours/decorations/travel-demo/templates/pages/home.areas.main.availableComponents.yaml.

This definition decorates the main/availableComponents node of the home.yaml definition in the travel-demo module and makes three additional components available to editors in the Add component dialog.

Site definition

The site definition contains configuration relevant for the entire site.

You can configure a site definition in the sites folder of any module using YAML. See, for example, the following site definition:

A DX Core instance can contain multiple site definitions.

Template availability

A site can explicitly define which page templates are available when a page is created in the Pages app.

In your site definition, expand templates/availability:

  • /templates lists the available page template.

  • /enableAllWithRenderType makes all configured FreeMarker templates available in addition.

Example

/<module-name>/sites/travel.yaml
...
templates:
  class: info.magnolia.module.site.templates.ReferencingPrototypeTemplateSettings
  prototypeId: travel-demo:pages/prototype
  availability:
    templates:
      home:
        id: travel-demo:pages/home
      standard:
        id: travel-demo:pages/standard
      searchResultPage:
        id: travel-demo:pages/searchResultPage
      pur:
        id: travel-demo:pages/pur
    enableAllWithRenderType:
      freemarker: freemarker
      spa: spa
...
If the availability node does not exist, then ALL templates configured in Magnolia will be available for selection in the Pages app by default.

You can customize page availability rules with your own Java class. For example, you could define which templates are available as a child of a specific template, rather than for the whole site.

Template prototype

The template prototype sets a default configuration for every page template in the site. By adding configuration to a prototype you avoid repeating configuration in each page template definition.

This configuration is in a YAML file in /templates/pages/prototype.yaml that is referenced in the site definition templates.

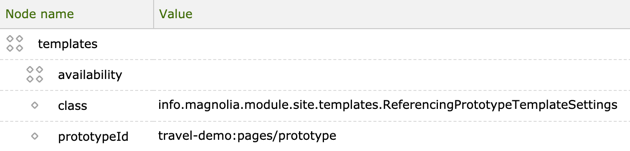

Image showing folder structure for template prototype

Content Languages

The site defines in which languages (locales) content can be entered on a page of the site. In the Travel demo, you can enter content in English and German in the Pages app.

This configuration is in i18n.

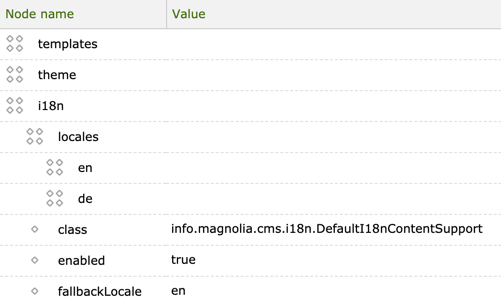

Image showing folder structure content languages

Web resources

Traditional web resources like CSS, JavaScript, fonts and the like can be accessed via a .resources URL. The .resources path makes files in the src/main/resources directory of a Maven module available.

For example, see: /magnolia-travel-demo/src/main/resources/travel-demo/templates/pages/areas/footer.ftl

An image resource is loaded via, for example,

<img src="${ctx.contextPath}/.resources/${theme.name}/img/logo-white.png" alt=""/>

The theme name is travel-demo-theme, so this URL will serve the file at /magnolia-travel-demo/src/main/resources/travel-demo-theme/img/logo-white.png

Configuration and content bootstraps

The modules contain additional configuration and content that is loaded to the JCR repository when the module is installed. The XML format of these files is specific to JCR repositories and is not easy read or edit by hand. These files are created by editing configuration in AdminCentral and exporting them. These files are stored in two directories in a module, mgnl-bootstrap and mgnl-bootstrap-samples.

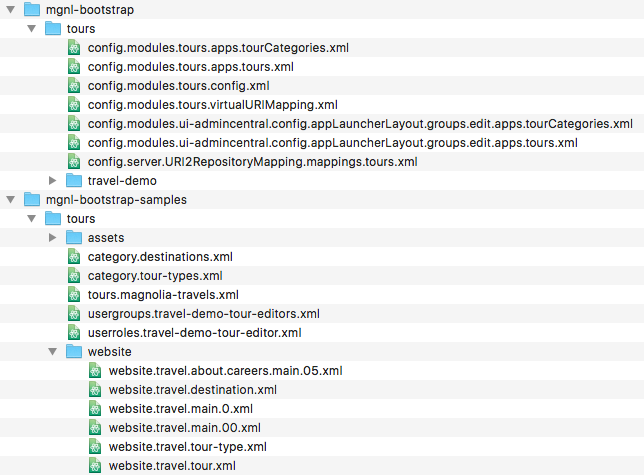

Developer bootstraps for demo

mgnl-bootstrap

Files in this directory will be loaded when the module is installed. This is the place for all configuration required for the module to function.

For example, this file stores the configuration of the site definition:

/magnolia-travel-demo/src/main/resources/mgnl-bootstrap/travel-demo/config.modules.travel-demo.config.travel.xml

mgnl-bootstrap-samples

Files in this directory are also loaded when the module is installed, but only if the magnolia.bootstrap.samples property is set to true in the magnolia.properties file for the instance. This is the place for the actual content of your project, or sample content to demonstrate how a module works. In this project, the categories, tours, assets and website content are stored here.

For example, this file stores the content of the site pages.

/magnolia-travel-demo/src/main/resources/mgnl-bootstrap-samples/travel-demo/website.travel.xml
