Magnolia DAM JCR implementation

Edition DX Core

License

MLA

Issues

DAM

Maven site

DAM

Latest

3.0.37

Modules

  • magnolia-dam-jcr

    • Magnolia specific DAM implementation based on JCR.

    • Stores DAM data in the JCR workspace dam.

    • Provides and configures info.magnolia.dam.jcr.JcrAssetProvider.

  • magnolia-dam-imaging

    • The link between magnolia-dam-jcr and the Imaging module.

    • Provides and configures info.magnolia.dam.imaging.ImagingBasedAssetRenderer, which is info.magnolia.dam.api.AssetRenderer based on magnolia-dam-jcr.

Installing with Maven

Bundled modules are automatically installed for you.

If the module is unbundled, add the following to your bundle including your project’s <dependencyManagement> section and your webapp’s <dependencies> section. If the module is unbundled but the parent POM manages the version, add the following to your webapp’s <dependencies> section.

<dependency>
  <groupId>info.magnolia.dam</groupId>
  <artifactId>magnolia-dam-jcr</artifactId>
  <version>3.0.37</version> (1)
</dependency>
1 Should you need to specify the module version, do it using <version>.
<dependency>
  <groupId>info.magnolia.dam</groupId>
  <artifactId>magnolia-dam-imaging</artifactId>
  <version>3.0.37</version> (1)
</dependency>
1 Should you need to specify the module version, do it using <version>.

Magnolia DAM JCR configuration

As mentioned above, the configuration for info.magnolia.dam.jcr.JcrAssetProvider and info.magnolia.dam.imaging.ImagingBasedAssetRenderer is set by their modules. Finally the configuration looks like this:

Magnolia DAM JCR configuration

NoOpAssetRenderer is configured by the DAM Core module.

Configuring asset download

In the dam.subApps.yaml file within the Resource Files app, you can customize certain properties of the asset download action like the ZIP file name and the maximum size limit when downloading multiple assets.

/dam-app-jcr/decorations/dam-assets-app/apps/dam.subApps.yaml
  actions:
    download:
      icon: icon-download
      class: info.magnolia.dam.app.action.JcrAssetDownloadActionDefinition
      availability: *notDeletedAvailability
    downloadMultiple:
      icon: icon-download
      class: info.magnolia.dam.app.action.download.multiple.JcrMultipleAssetsDownloadActionDefinition
      zipName: custom_file_name (1)
      maxSizeInBytes: 1024 (2)
      availability:
        multiple: true
        rules:
          notDeleted: *notDeleted
1 zipName is an optional property where you assign a default name to the ZIP file. If unset, the batch of assets is downloaded as assets.zip.
2 maxSizeInBytes is an optional property. You can set the maximum size limit of the downloaded ZIP file if needed to improve performance. If this property is not added, there is a 1GB default limit.

Configuring a maximum size limit for uploads

You can change the default maximum size limit for uploading assets in the dam.subApps.yaml in the Resource Files app.

/dam-app-jcr/decorations/dam-assets-app/apps/dam.subApps.yaml
 actions:
    uploadMultiple:
      icon: icon-import
      class: info.magnolia.dam.app.action.upload.bulk.JcrMultipleAssetsUploadActionDefinition
      maxSizeInBytes: 104857600 (1)
      availability: *notDeletedWritableRootAvailability
1 Value maxSizeInBytes to suit your requirements.

Restricting upload files by MIME type

You can restrict the MIME types of files allowed for upload using the allowedMimeTypePattern property.

Property Description

allowedMimeTypePattern

optional, default is all types

Comma-separated list of allowed MIME types. Examples include image/, application/pdf, audio/ and video/*. For a full list, see IANA Media Types.

Since there are several locations where files may be uploaded by users, the configuration is also set in different files. We recommend you use the same restrictions.

  • Bulk upload dialog:

    /dam-app-jcr/decorations/dam-assets-app/apps/dam.subApps.yaml
     actions:
        uploadMultiple:
          icon: icon-import
          class: info.magnolia.dam.app.action.upload.bulk.JcrMultipleAssetsUploadActionDefinition
          maxSizeInBytes: 104857600
          allowedMimeTypePattern: image/jpg (1)
          availability: *notDeletedWritableRootAvailability
    1 In this example, only .jpg files are allowed when uploading.
  • Single upload field in edit dialogs:

    /dam-app-jcr/dialogs/uploadAndEdit.yaml
    form:
      properties:
        upload:
          factoryClass: info.magnolia.dam.app.field.factory.DamUploadFieldFactory
          class: info.magnolia.ui.editor.UploadViewDefinition
          field:
            class: info.magnolia.dam.app.field.DamUploadFieldDefinition
            maxUploadSize: 104857600
            allowedMimeTypePattern: "image/*,application/pdf" (1)
    1 In this example, all image files and .pdf files are allowed when uploading.

Displaying asset sizes in the asset browser

In the default configuration, asset sizes are not shown in the asset browser since this information is regarded as less important to content editors. However, you can use the definition decoration mechanism to reconfigure the default column composition and add a column that will display the sizes. The sort-by-size function will be also available through the up/down arrows in the column header.

DAM assets JCR subapp with bytesize column added via definition decoration

To add the column to the default configuration, create a definition decorator file in your light module, as shown in the example below. Use the YAML !override directive to specify the position of the column in the column list.

$magnolia.resources.dir/<your-module>/decorations/dam-assets-app/apps/dam.subApps.yaml
jcrBrowser:
  workbench:
    contentViews:
      - name: tree
        columns: !override
          name: &name
          title: &title
          jcr:content/size: &size
            type: java.lang.Long
            label: Size (bytes)

Searching for DAM JCR assets

Dam assets that are stored in the JCR can be searched for in the Pages app when adding an image component. An example is shown below.

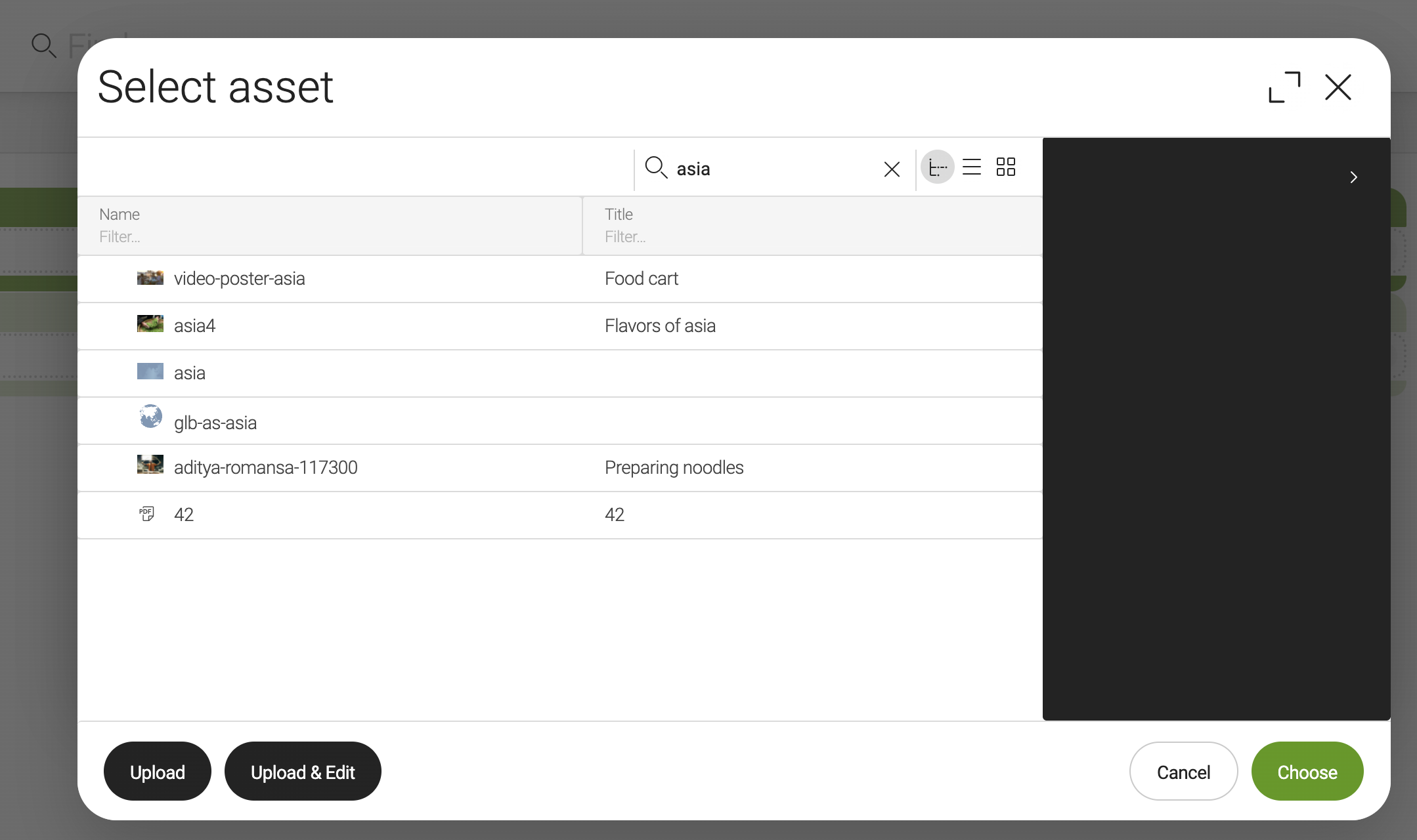

Searching for DAM JCR images

The full-text search field, which is marked with a magnifying glass, uses an algorithm that includes the following node name search configurations.

  • Contains: checks whether the node name contains the search string

  • StartWith: checks whether the node name starts with the search string

  • None: ignores LocalName search (only full-text search is used)

To configure the node name search, go to the Configuration app and update the value of dam-jcrconfignodeNameSearch to the value that you want (e.g., StartWith). The node name search is not indexed and, therefore, a little slower than the full-text search.
