Jackrabbit search

By default Magnolia’s search functionality is provided by the Jackrabbit repository and this page describes the configuration options for Jackrabbit-based search. For more advanced search options and especially if you need to manage high volumes of assets you can set up Magnolia to use Apache Solr, see Solr search.

How search indexing works

A workspace needs to be indexed in order to make information retrieval fast and accurate. Indexing is the process of collecting and parsing content, and storing the data in an index to make it easier and faster to retrieve requested portions of the data.

Magnolia search is based on the default Jackrabbit search implementation. Jackrabbit uses an Apache Lucene-based indexer to process the data stored in the JCR. Node names and property values are indexed immediately and stored in the repository. Text from documents is extracted in a background process which makes document content searchable after a short delay.

Each Magnolia instance has its own repository and its own index. This means that the author instance index is typically different from public instance indexes. Any content that has not been published to a public instance cannot be found when running a search on that public instance.

Apache Lucene Indexing Configuration

The Apache Lucene Indexing Configuration lets you specify indexed node properties, assess their impact on search results, and configure analyzers. The index configuration file defines how Lucene indexes a workspace. If a search indexing inconsistency occurs, it might be necessary to recreate the search index.

Implementing search using templating functions

Templating functions are used to render search results on a site without the need for a component model or Java knowledge. Although they are not directly related to the indexing process, you can use them to display the search results retrieved from the index.

There are many ways to implement search on a site. This section explains how to do it using templating functions and uses the Magnolia Travel Demo site as an example. If the demo modules are not installed your can download the magnolia-travel-demo-parent module and install the demo and tours modules.

The MTE module provides search templating functions that allow front-end developers to render search results using only a template script.

Template function methods

There are methods for searching pages and other content, such as content stored in content apps. The methods are exposed in templates as searchfn and you can find templating examples at searchfn.

All you need to implement search on a site is a component to retrieve the results from the search index and display them on the page.

This is how search works on the Magnolia Travel Demo site.

  • searchResults component searches pages and content apps for relevant results and searchResults.ftl renders this component.

  • searchResultsPage template autogenerates the searchResults component.

  • Search results display on the /travel/meta/search-results page that is based on the searchResultsPage template.

  • /search-results page is assigned as the search page for the site in the homePageProperties dialog

See the travel-demo repository for specific examples.

Displaying pages in the website workspace

The searchPages method displays pages stored in the website workspace in the search results. This method retrieves pages whose content (text, image and other properties) was added manually in the Pages app, as opposed to content retrieved from an app or another source. Set the root path of the site to return the relevant items.

Here’s the snippet from searchResults.ftl in the Travel Demo. The root path is /travel.

[#-------------- ASSIGNMENTS --------------]
[#assign queryStr = ctx.getParameter('queryStr')!?html]

[#-------------- RENDERING --------------]
[#if content.headline?has_content]
    <h2>${content.headline}</h2>
[/#if]

[#if queryStr?has_content]
    [#assign searchResults = searchfn.searchPages(queryStr, '/travel') /]
    [#assign recordsFound = searchResults?size /]

    <h3><em>${recordsFound}</em> ${i18n['search.pagesFoundFor']} "${queryStr}"</span></h3>

    <div class="list-group">
        [#if searchResults?has_content]
            [#list searchResults as item]
                <a href="${cmsfn.link(item)}" class="list-group-item">
                    <h4 class="list-group-item-heading">${item.title!}</h4>
                    <p class="list-group-item-text">${item.excerpt!}</p>
                </a>
            [/#list]
       [/#if]
    </div>

    <#-- More processing here, not shown in snippet >

[/#if]

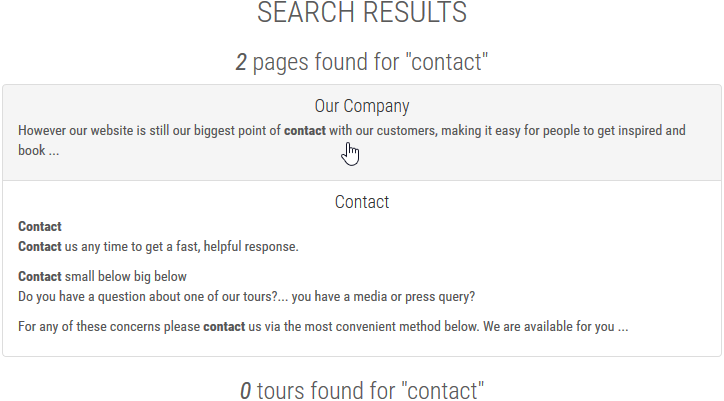

Here are the results for the term contact. Excerpts and highlighting are provided automatically by the indexing configuration.

Search results

Displaying content stored in apps

The searchContent method allows you to search any content in the JCR. The method is useful to display pages whose content is stored in another workspace. In this scenario you need to set the workspace where the content is stored, the parent URL within that workspace and the node type.

In the Magnolia Travel Demo site all Tour content (text, images and more) is entered in the Tours app and retrieved by a component that displays the content on pages. The app content is stored in the tours workspace, under /magnolia-travels and is of node type mgnl:content.

Here’s the snippet from searchResults.ftl that retrieves Tours app content.

[#assign searchResults = searchfn.searchContent('tours', queryStr, '/magnolia-travels', 'mgnl:content') /]
[#assign recordsFound = searchResults?size /]

    <h3><em>${recordsFound}</em> ${i18n['search.toursFoundFor']} "${queryStr}"</span></h3>

    <div class="list-group">
    [#if searchResults?has_content]
        [#list searchResults as item]
            <a href="${cmsfn.link(item)}" class="list-group-item">
               <h4 class="list-group-item-heading">${item.description!}</h4>
               <img src="${damfn.getAssetLink(item.image)}" class="img-responsive img-rounded" height="80" width="160" alt="${item.description!}"/>
               <p class="list-group-item-text">${item.excerpt!}</p>
            </a>
        [/#list]
    [/#if]
    </div>

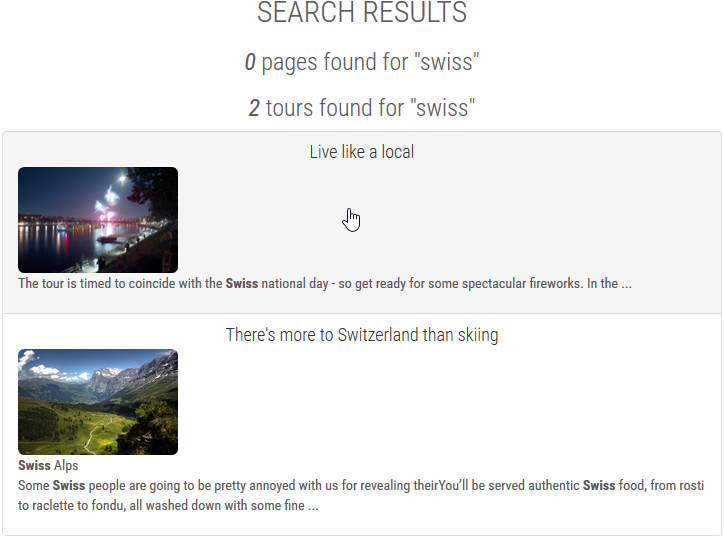

Here are the results for the term swiss.

Search results in Tours

URI mappings

You can use URI mappings to redirect incoming requests to the location of content, ensuring that the content is included in the search index. This means that URI mappings play a role in determining which content is indexed and how it is indexed in the search configuration.

When you display results from content app workspaces, build a link to a detail page that displays the content item in question using URI mappings.

URI mapping is used in the Demo Travels example to display app content on pages and ensure that the content is included in the search index.

Configuring URI2Repository mapping

The URI2Repository mapping URI mapping mechanism determines which repository node should be served when a particular URI is requested.

Here’s the URI2Repository mapping for the tours workspace in /server/URI2RepositoryMapping/mappings/tours.

URI2Repository mapping for the tours workspace

Table 1. Required properties
Property Description

tours

tours URI2Repository mapping node.

     URIPrefix

Injects the /tours/ path into the request URL.

     repository

Repository the mapping applies to.

Configuring VirtualURI mapping

Virtual URI mapping allows you to create short, convenient URLs.

Here’s the virtual URI mapping for the Tours app in /modules/tours/virtualURIMapping/toursMapping.

Virtual URI mapping for the Tours app

Table 2. Properties
Property Description

toursMapping

Tours virtual URI mapping node.

optional property

     class

RegexpVirtualURIMapping allows you to specify a regexp pattern that matches a sequence of characters. A pattern can match a variety of URIs.

     fromURI

Path to tours in the tours workspace as mapped in the URI2Repository mapping configuration.

     toURI

URI to which tours are forwarded /travel is the root node of the site and /tour is injected by the URI2Repository mapping configuration.

You can customize search by writing your own queries to search the index and execute them in code. A query returns a result set which you can display on a page.

Write queries in a language supported by the JCR repository such as SQL-2 (grammar, examples).

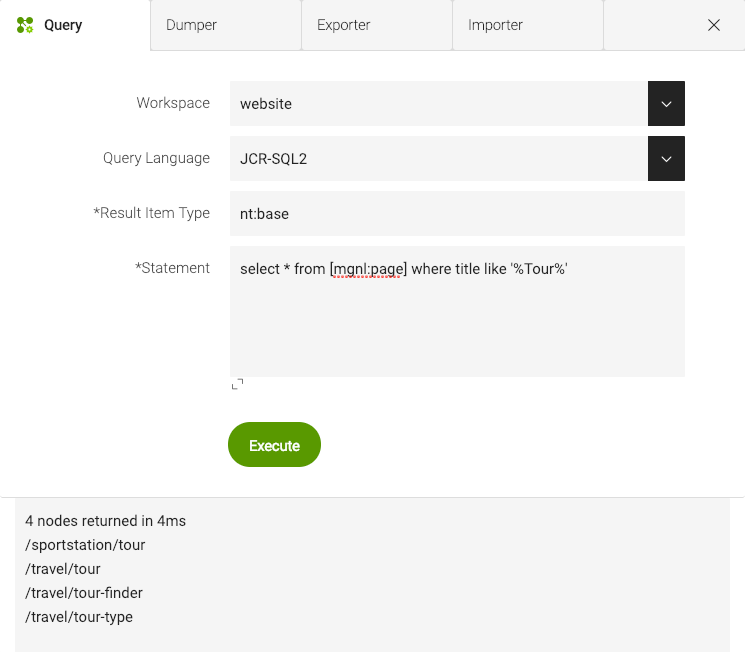

You can test your queries in the Query subapp. When you get the result set you want, implement the query in code.

Query subapp

Example queries

The following queries are written in SQL-2. See JCR Query Cheat Sheet for more examples.

  1. Find pages that contain the word swiss.

Workspace: website

SELECT * FROM [mgnl:page] AS t WHERE
   ISDESCENDANTNODE([/tours]) AND
   CONTAINS(t.*, 'swiss')
  1. Find modules that have commands. This query looks for a folder named commands in the module configuration.

Workspace: config

SELECT * FROM [mgnl:content] AS t WHERE
   ISDESCENDANTNODE([/modules]) AND
   name(t) = 'commands'
  1. Find assets that are not JPG images under the /example path in the DAM.

Workspace: dam

SELECT * FROM [nt:base] AS t WHERE
   ([jcr:primaryType] = 'mgnl:asset' AND
   [type] <> 'jpg') AND
   ISDESCENDANTNODE([/example])
ORDER BY [t].title asc

Security

Search within Magnolia is access controlled. Search results include only content the user has permission to access. Permissions are controlled through Security. When you execute a query in info.magnolia.context.MgnlContext, contextual factors such as the current user’s permissions are taken into account. If you do not have permission to the items you are querying, they will not show up in the results.
